1. Introduction to DMX

DMX (Digital Multiplexing) is the backbone of modern stage and architectural lighting control. Originating from the needs of theaters, it allows a single controller to send precise commands to hundreds of spotlights, fog machines, LEDs, and moving heads simultaneously. Unlike simple analog dimmers, DMX communicates in digital “packets,” enabling designers to precisely choreograph complex color transitions, strobe patterns, and synchronized effects.

2. A Brief  History of DMX

DMX emerged in the mid-1980s as the industry sought to replace inconsistent analog protocols. The 1986 DMX512 standard defined the transmission of up to 512 data channels over shielded cable, standardizing communication between brands and devices. Despite the existence of newer protocols, DMX512 remains the most widely used and is highly regarded for its simplicity, reliability, and real-time performance.

3.Core Components of DMX Systems

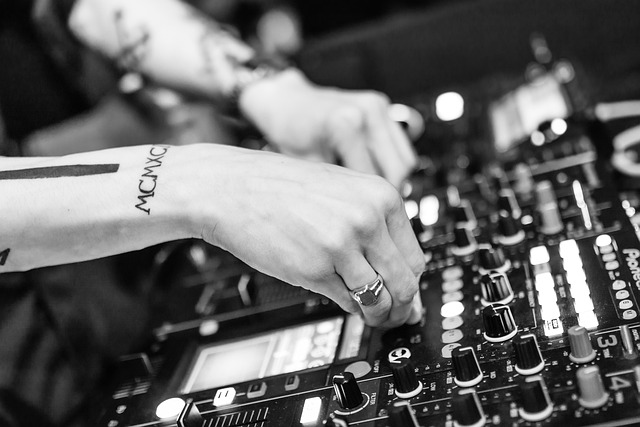

 3.1 DMX Controller

  The “brains” of your equipment:

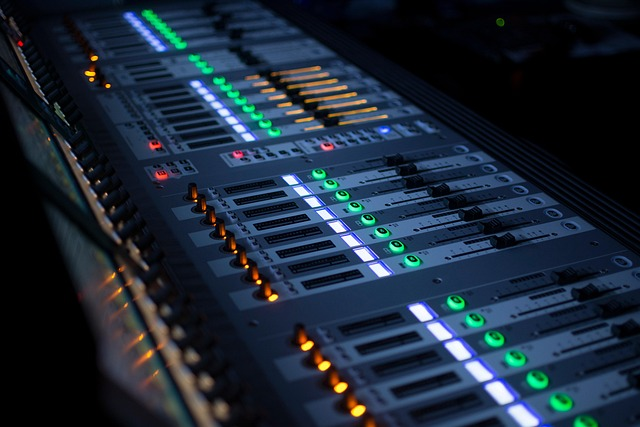

• Hardware console: A physical control panel with faders and buttons.

• Software Interface: A PC or tablet application that maps channels to sliders.

• Hybrid Devices: Combines an integrated controller with a USB or Ethernet output.

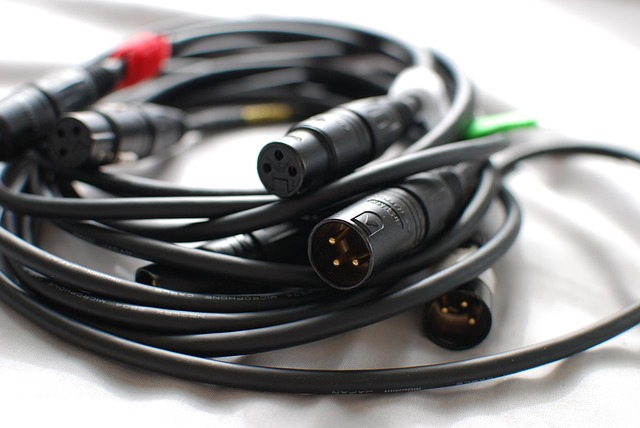

 3.2 DMX Cables and Connectors

  High-quality data transmission requires:

• 5-pin XLR cable: This is the official standard, but 3-pin XLR cables are often used when budgets are tight.

• Splitters and Booster: Distribute the signal across multiple cables without voltage drops.

• Terminator: A 120 Ω resistor at the end of the cable prevents signal reflections.

 3.3 Fixtures and Decoders

  Lighting and effects communicate via DMX:

• Fixtures with integrated DMX connectors: Moving heads, PARs, LED strips.
• External Decoders: Convert DMX data to PWM or analog voltage for use with strips, tubes, or custom fixtures.
• UXL Tags: Some devices support wireless DMX, requiring a transceiver module instead of cables.

4.How DMX Communicates

 4.1 Signal Structure and Channels

  DMX sends data in packets of up to 513 bytes:

1. Start Code (1 byte): Always zero for standard fixtures.

2. Channel Data (512 bytes): Each byte (0-255) determines intensity, color, pan/tilt, or effect speed.

 Each device receives its assigned channel and responds based on the value of the byte received.

  4.2 Addressing and Universes

1. A channel group consists of 512 channels.

2. For larger installations, multiple channel groups can be daisy-chained or sent over Ethernet (via Art-NET or sACN).

3. DMX Address: The starting channel number for a fixture—this is important to prevent two fixtures from using the same data.

5.Setting Up a Basic DMX Network

5.1 Planning Your Layout

1. Assigning Fixtures: Draw a rough map of the venue and label each fixture with its DMX address and channel number.

2. Calculating Cable Length: Follow the recommended total cable length (typically 300 meters).

5.2 Wiring Tips and Best Practices

1. Daisy Chain: Route cables from controller to fixture to next fixture to termination resistor.

2. Shielding: Avoid tangling cables and keep them away from power lines to reduce interference.

3. Label All Cables: Label both ends of each cable with the channel number and starting channel.

5.3 Initial Configuration

1. Assigning Addresses: Use the device’s menu or DIP switches.

2. Power-On Test: Slowly increase the controller’s brightness to ensure proper response.

3. Troubleshooting: If a device is unresponsive, swap the cable ends, check the termination resistors, and confirm the channel assignment.

6. Practical Applications of DMX

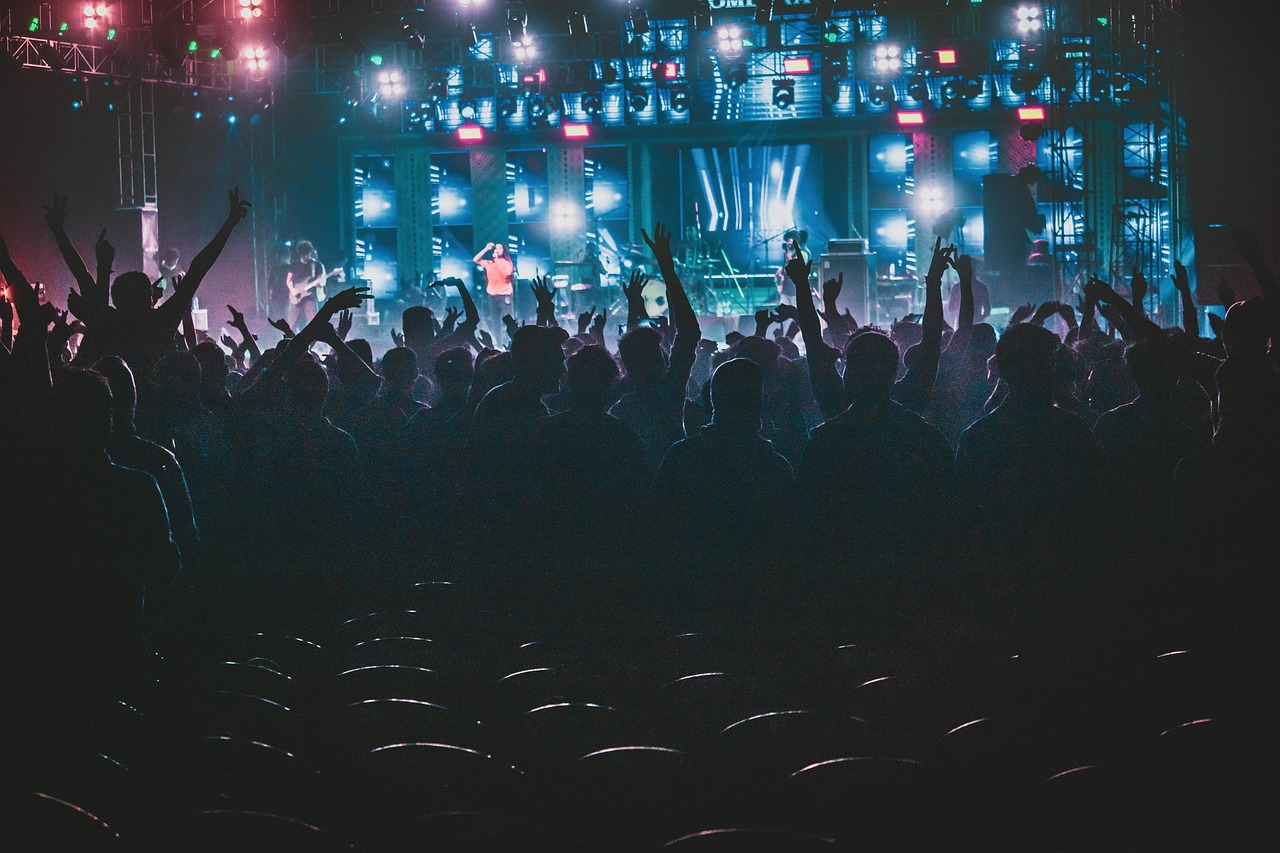

1. Concerts and Festivals: Coordinate stage lighting, motion graphics, and fireworks with music.

2. Theatrical Productions: Pre-program subtle fades, color signals, and blackout sequences.

3. Architectural Lighting: Add vitality to building facades, bridges, or public art installations.

4. Tradeshows: Use dynamic color gradients and dot signals to highlight your booth.

7.Troubleshooting Common DMX Issues

1. Flickering devices: Often caused by a faulty cable or missing termination resistors.

2. Unresponsive devices: Check for addressing errors or replace the faulty cable.

3. Intermittent control: Beware of electromagnetic interference—rewire the cables or add ferrite beads.

4. Overload distribution: If more than 32 devices share a single area, use an active distributor.

8.Advanced Techniques and Creative Applications

1. Pixel mapping: Use each LED as a separate channel to draw video or animation on the wall.

2. Timecode synchronization: Link DMX cues to audio or video playback (MIDI/SMPTE) for perfectly timed performances.

3. Interactive control: Integrate motion sensors or audience-triggered triggers to make lighting more interactive.

4. Wireless innovation: For venues where cables are impractical, use Wi-Fi or proprietary RF-DMX systems.
